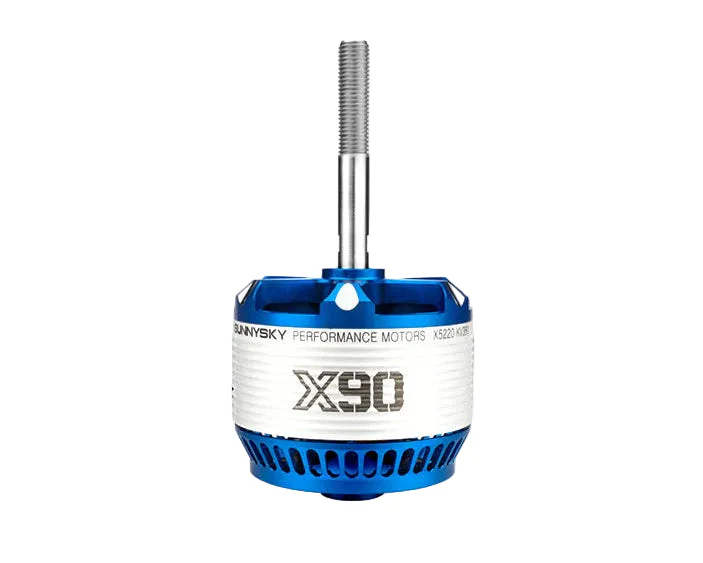

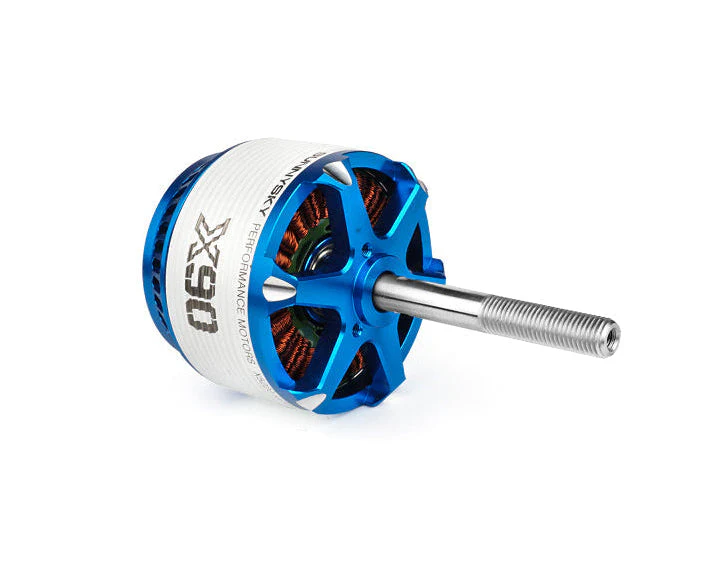

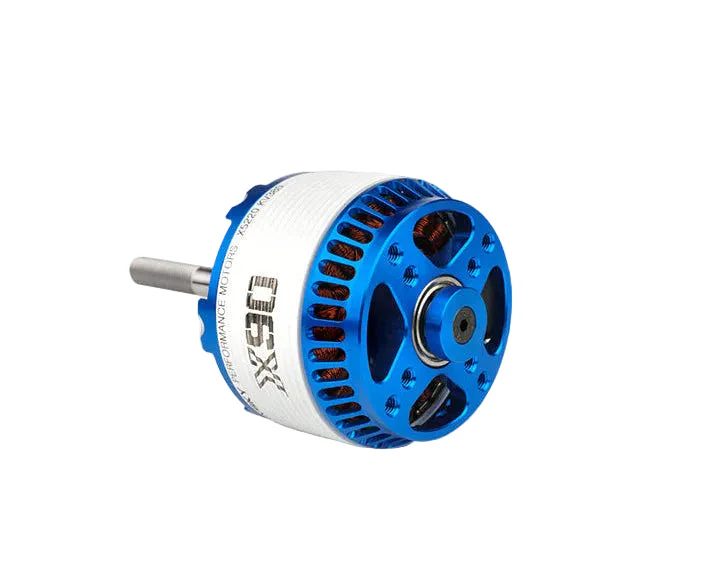

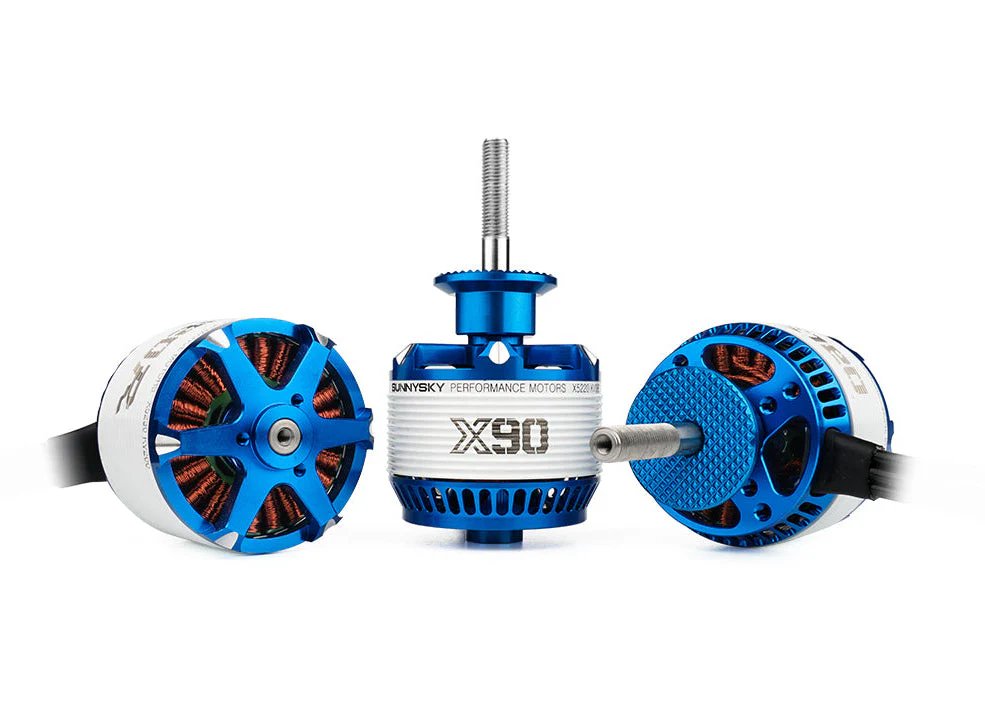

SunnySky X Series V3 X5220 90E Brushless Motors 90 Equivalent Power
[TABS]X5220-90E
Technical parameters
| Motor Model / KV | X5220-III/ KV380 |
|---|---|
| Stator/Rotor Poles | 24N28P |
| Internal resistance | 11.7mΩ |
| Motor size | φ60.15*112.0mm |
| Shaft diameter | 8.0mm |
| AWG | 20AWG 150mm |
| Motor weight(wire included) | 486g |
| Motor weight(wire excluded) | —— |
| Rated operational voltage | 6S |
| No-load current | 3.9A/10V |
| Maximum continuous power | 2550W |
| Maximum continuous current | 112A/30s |
| ESC recommended use | 120A |
| Propeller size recommended use | APC18*8/EOLO19*9/20*8 |
Test report
| No.of Stator Slots | 24 | Weight | 486g |
|---|---|---|---|
| No.of Rotor Poles | 28 | Rotor Diameter | 60.15mm |
| Motor Kv | 380 | Body Lengt h | 51mm |
| No-load current | 3.9A/10V | Max Lipo Cell | 6S |
| Motor Resistance | 11.7mΩ | ESC | 120A |
| Max Continuous Current | 112A/30s | Recommended Prop(inch) | APC18*8/EOLO19*9/20*8 |
| Max Continuous Power |
2550W |
[/TABS]
[TABS]X5220-90E
Technical parameters
| Motor Model / KV | X5220-III/ KV380 |
|---|---|
| Stator/Rotor Poles | 24N28P |
| Internal resistance | 11.7mΩ |
| Motor size | φ60.15*112.0mm |
| Shaft diameter | 8.0mm |
| AWG | 20AWG 150mm |
| Motor weight(wire included) | 486g |
| Motor weight(wire excluded) | —— |
| Rated operational voltage | 6S |
| No-load current | 3.9A/10V |
| Maximum continuous power | 2550W |
| Maximum continuous current | 112A/30s |
| ESC recommended use | 120A |
| Propeller size recommended use | APC18*8/EOLO19*9/20*8 |
Test report
| No.of Stator Slots | 24 | Weight | 486g |
|---|---|---|---|
| No.of Rotor Poles | 28 | Rotor Diameter | 60.15mm |
| Motor Kv | 380 | Body Lengt h | 51mm |
| No-load current | 3.9A/10V | Max Lipo Cell | 6S |
| Motor Resistance | 11.7mΩ | ESC | 120A |
| Max Continuous Current | 112A/30s | Recommended Prop(inch) | APC18*8/EOLO19*9/20*8 |
| Max Continuous Power |
2550W |
[/TABS]
$49.00
Original: $139.99
-65%SunnySky X Series V3 X5220 90E Brushless Motors 90 Equivalent Power—
$139.99
$49.00Description
[TABS]X5220-90E
Technical parameters
| Motor Model / KV | X5220-III/ KV380 |
|---|---|
| Stator/Rotor Poles | 24N28P |
| Internal resistance | 11.7mΩ |
| Motor size | φ60.15*112.0mm |
| Shaft diameter | 8.0mm |
| AWG | 20AWG 150mm |
| Motor weight(wire included) | 486g |
| Motor weight(wire excluded) | —— |
| Rated operational voltage | 6S |
| No-load current | 3.9A/10V |
| Maximum continuous power | 2550W |
| Maximum continuous current | 112A/30s |
| ESC recommended use | 120A |
| Propeller size recommended use | APC18*8/EOLO19*9/20*8 |
Test report
| No.of Stator Slots | 24 | Weight | 486g |
|---|---|---|---|
| No.of Rotor Poles | 28 | Rotor Diameter | 60.15mm |
| Motor Kv | 380 | Body Lengt h | 51mm |
| No-load current | 3.9A/10V | Max Lipo Cell | 6S |
| Motor Resistance | 11.7mΩ | ESC | 120A |
| Max Continuous Current | 112A/30s | Recommended Prop(inch) | APC18*8/EOLO19*9/20*8 |
| Max Continuous Power |
2550W |
[/TABS]
