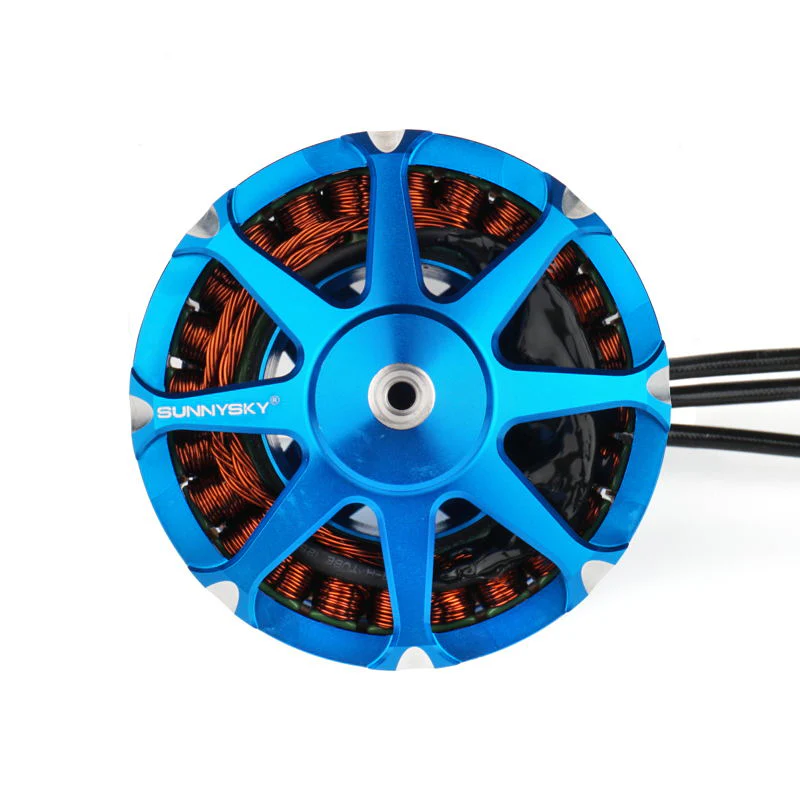

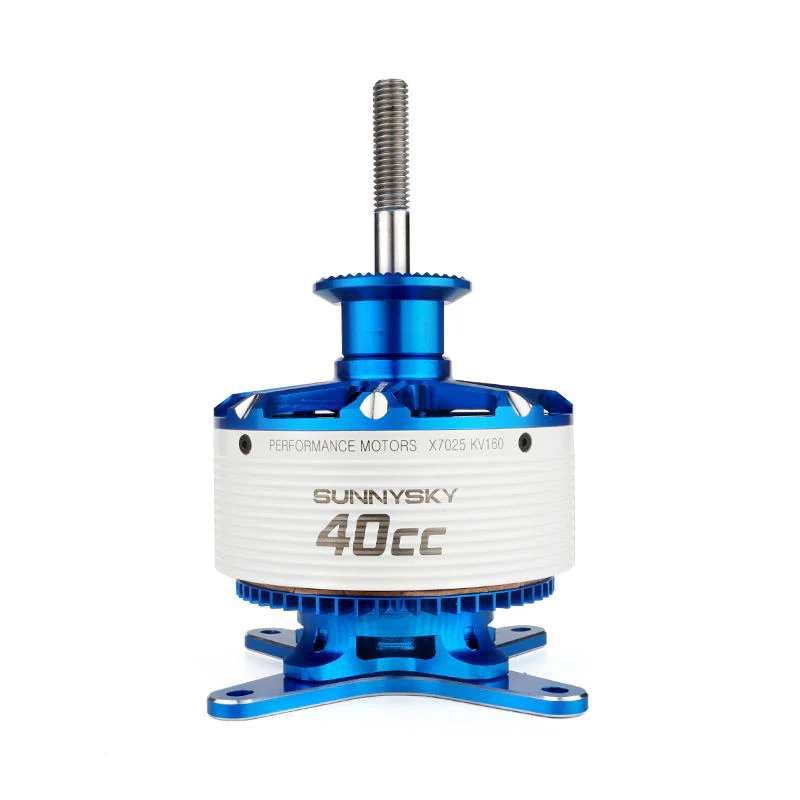

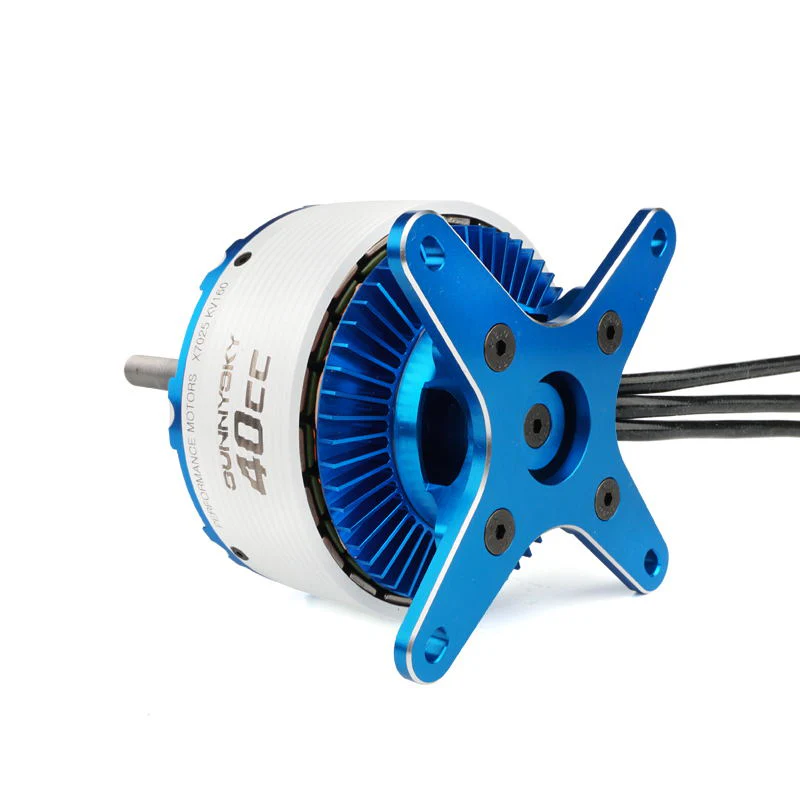

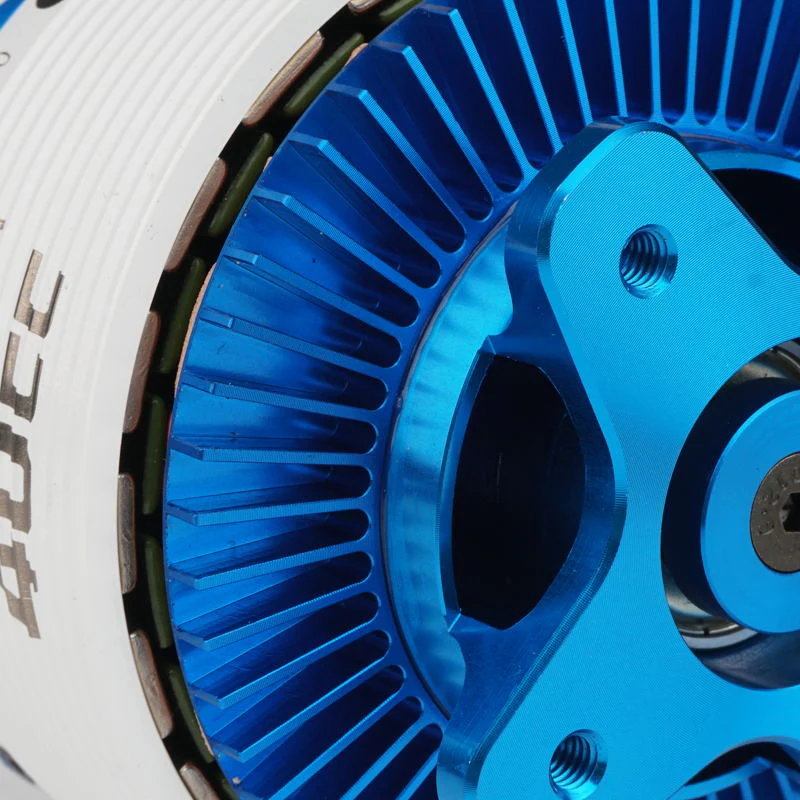

SunnySky X Series V3 X7025 V3 40CC Equivalent Motors

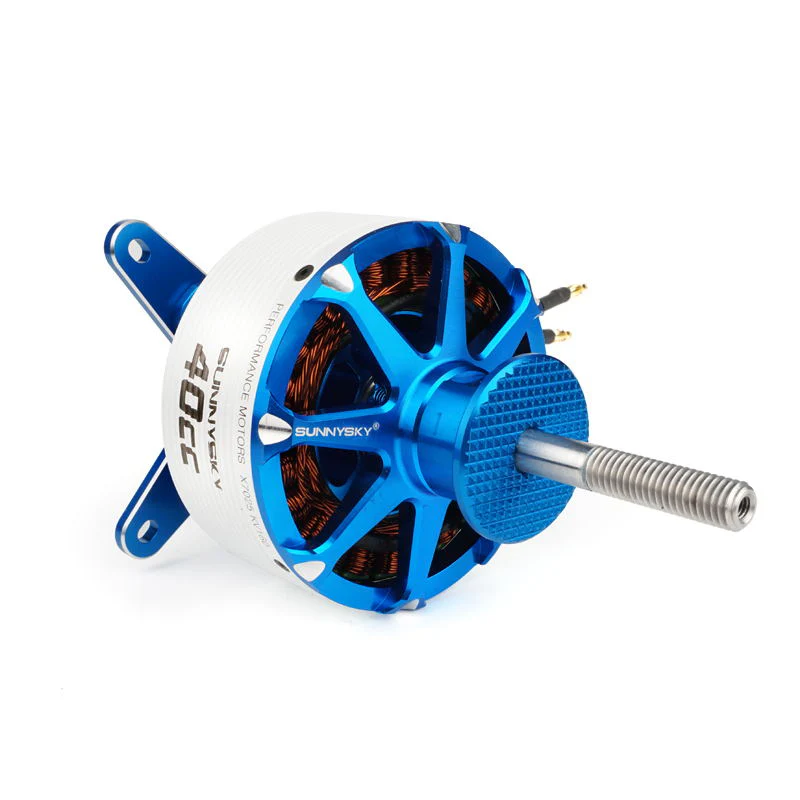

Product image 1
1 / 5

SunnySky X Series V3 X7025 V3 40CC Equivalent Motors

[TABS]OVERVIEW

Motor Model / KV 7025KV160 7025KV190
Stator/Rotor Poles 24N22P 24N22P
Internal resistance 22.8mΩ 15.06mΩ
Motor size Motor length：67mm Motor length：67mm
Shaft diameter 10mm 10mm
AWG Leading wire Leading wire
Motor weight(wire included) 780g 785g
Motor weight(wire excluded)
Rated operational voltage 37.89V 38.05V
No-load current 49.993A 85.216A
Maximum continuous power 5400W 5800W
Maximum continuous current 120A/30s 127A/30s
ESC recommended use 130A 130A
Propeller size recommended use 2110／2210／2214／2410 21*10／22*10／22*14



[/TABS]

[TABS]OVERVIEW

Motor Model / KV 7025KV160 7025KV190
Stator/Rotor Poles 24N22P 24N22P
Internal resistance 22.8mΩ 15.06mΩ
Motor size Motor length：67mm Motor length：67mm
Shaft diameter 10mm 10mm
AWG Leading wire Leading wire
Motor weight(wire included) 780g 785g
Motor weight(wire excluded)
Rated operational voltage 37.89V 38.05V
No-load current 49.993A 85.216A
Maximum continuous power 5400W 5800W
Maximum continuous current 120A/30s 127A/30s
ESC recommended use 130A 130A
Propeller size recommended use 2110／2210／2214／2410 21*10／22*10／22*14



[/TABS]

$87.50

Original: $249.99

-65%
SunnySky X Series V3 X7025 V3 40CC Equivalent Motors—

$249.99

$87.50

Description

[TABS]OVERVIEW

Motor Model / KV 7025KV160 7025KV190
Stator/Rotor Poles 24N22P 24N22P
Internal resistance 22.8mΩ 15.06mΩ
Motor size Motor length：67mm Motor length：67mm
Shaft diameter 10mm 10mm
AWG Leading wire Leading wire
Motor weight(wire included) 780g 785g
Motor weight(wire excluded)
Rated operational voltage 37.89V 38.05V
No-load current 49.993A 85.216A
Maximum continuous power 5400W 5800W
Maximum continuous current 120A/30s 127A/30s
ESC recommended use 130A 130A
Propeller size recommended use 2110／2210／2214／2410 21*10／22*10／22*14



[/TABS]
